0621 FullAdder 바텀업 설계 (실습 1-1~1-4)

MUX4_to_1

4:1 멀티플렉서

s1s0신호에 따라서 y0~y3의 신호가 출려됨

module MUX4_to_1(
 output wire  OUT,
 input  wire  I0, I1, I2, I3,
 input  wire  S1, S0
);

 wire   s1n, s0n;
 wire   y0, y1, y2, y3;

 not (s1n, S1);
 not (s0n, S0);
 and (y0, I0, s1n, s0n);
 and (y1, I1, s1n, S0);
 and (y2, I2, S1,  s0n);
 and (y3, I3, S1,  S0);
 or  (OUT, y0, y1, y2, y3);

endmodule

tb_mux

`timescale 10ns/1ps
module tb_mux;
reg IN0, IN1, IN2, IN3;
reg S0, S1;
wire OUTPUT;

MUX4_to_1 mymux(
	.OUT (OUTPUT),
	.I0  (IN0   ),
	.I1  (IN1   ),
	.I2  (IN2   ),
	.I3  (IN3   ),
	.S1  (S1   ),
	.S0  (S0   )
);

initial begin
     IN0 = 1'b0; IN1 = 1'b0; IN2 = 1'b1; IN3 = 1'b1;
     S1 = 1'b0; S0 = 1'b0;
 # 1 S1 = 1'b0; S0 = 1'b1;
 # 1 S1 = 1'b1; S0 = 1'b0;
 # 1 S1 = 1'b1; S0 = 1'b1;
 #5
$finish;
end

endmodule



ha

module Half_Adder (
	output wire SUM, CARRY,
	input wire X,Y
);

	and (CARRY, X, Y);
	xor (SUM, X, Y);

endmodule

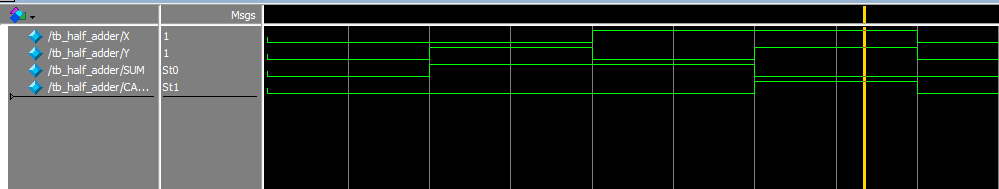

tb_ha

`timescale 10ns/1ps

module tb_half_adder;
reg X, Y;
wire SUM, CARRY;

Half_Adder myha(SUM, CARRY, X, Y);

initial
begin
X=1'b0 ; Y = 1'b0;
#1 X=1'b0 ; Y = 1'b1;
#1 X=1'b1 ; Y = 1'b0;
#1 X=1'b1 ; Y = 1'b1;
#1 X=1'b0 ; Y = 1'b0;
#1 X=1'b0 ; Y = 1'b0;
end

endmodule





fa

module Full_Adder (
	output wire SUM, CARRY_OUT,
	input wire X,Y,CARRY_IN
);

wire sum1;
wire carry1, carry2;

// HA (SUM, CARRY, X, Y) ???
Half_Adder ha0 (sum1, carry1, X, Y);
Half_Adder ha1 (SUM, carry2, sum1, CARRY_IN);
or (CARRY_OUT, carry1, carry2);

endmodule

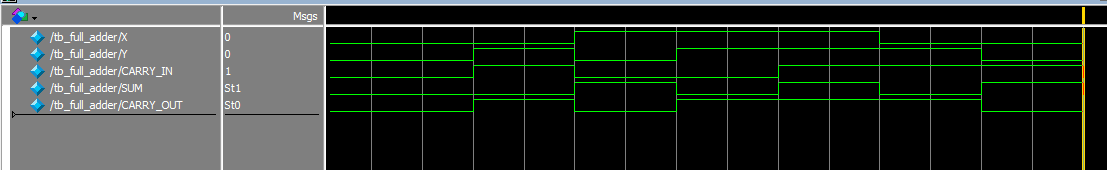

tb_fa

`timescale 10ns/1ps

module tb_full_adder;

reg X,Y,CARRY_IN;
wire SUM, CARRY_OUT;

Full_Adder myfa (SUM, CARRY_OUT, X, Y, CARRY_IN);

initial begin
X = 1'b0; Y = 1'b0; CARRY_IN = 1'b0;
#1  X = 1'b0; Y = 1'b0; CARRY_IN = 1'b0;
#1  X = 1'b0; Y = 1'b1; CARRY_IN = 1'b1;
#1  X = 1'b1; Y = 1'b0; CARRY_IN = 1'b0;
#1  X = 1'b1; Y = 1'b1; CARRY_IN = 1'b0;
#1  X = 1'b1; Y = 1'b1; CARRY_IN = 1'b1;
#1  X = 1'b0; Y = 1'b1; CARRY_IN = 1'b1;
#1  X = 1'b0; Y = 1'b0; CARRY_IN = 1'b1;
#1  X = 1'b0; Y = 1'b0; CARRY_IN = 1'b0;
end

endmodule



fulladder  ==ripple carry adder

module fulladder4b(
	output wire [3:0] SUM,
	output wire       CARRY_OUT,
	input wire [3:0] X,
	input wire [3:0] Y,
	input wire       CARRY_IN
);

wire c1, c2, c3;


// Full_Adder ( output wire SUM, CARRY_OUT, input wire X,Y,CARRY_IN);  // ãﾅ변수 순서 참고
Full_Adder fa0 (SUM[0], c1, X[0], Y[0], CARRY_IN);
Full_Adder fa1 (SUM[1], c2, X[1], Y[1], c1);
Full_Adder fa2 (SUM[2], c3, X[2], Y[2], c2);
Full_Adder fa3 (SUM[3], CARRY_OUT, X[3], Y[3], c3);

endmodule

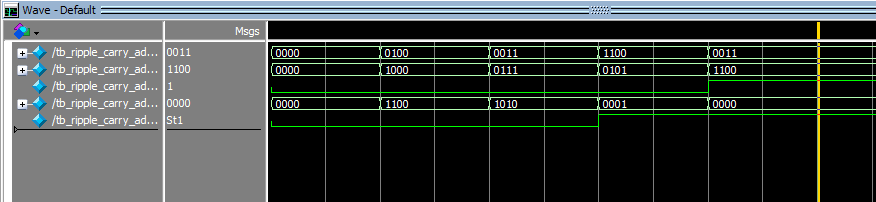

tb_ripple carry adder

`timescale 10ns/1ps

module tb_ripple_carry_adder;

reg [3:0] X;
reg [3:0] Y;
reg       CARRY_IN;
wire [3:0] SUM;
wire      CARRY_OUT;

fulladder4b fa4b (SUM, CARRY_OUT, X, Y, CARRY_IN);

initial begin
/*
X=4'b0000; Y=4'b0000; CARRY_IN = 1'b0;
#1 X=4'b0000; Y=4'b0001; CARRY_IN = 1'b0;
#1 X=4'b0000; Y=4'b0001; CARRY_IN = 1'b0;
#1 X=4'b1100; Y=4'b0011; CARRY_IN = 1'b0;
#1 X=4'b1100; Y=4'b0011; CARRY_IN = 1'b1;
#1 X=4'b1111; Y=4'b1111; CARRY_IN = 1'b1;*/

X=4'b0000; Y=4'b0000; CARRY_IN = 1'b0;  // carry_in 초기화 중요
# 1 X=4'b0100; Y=4'b1000;
# 1 X=4'b0011; Y=4'b0111;
# 1 X=4'b1100; Y=4'b0101;
# 1 X=4'b0011; Y=4'b1100;

# 10;
end

endmodule
